Upgrade to Kwikset Signature Series products for designer looks and excellent security. The San Clemente handle set offers a sharp, contemporary appearance. You may quickly and easily improve the entrance to your home with simple lines and a range of finishes. San Clemente also has a movable screw that makes attaching a door simple and certain to fit. The grip on the inside and the thumb piece on the exterior are used to actuate the latch bolt. A key on the outside and a thumb turn on the inside are used to open the deadbolt. The finishing touch for this product is the deep tones of matte black. The Matte Black finish gives the product a rich and cozy compliment to its aesthetic.
Features
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Microban protection keeps door hardware 99.9% cleaner than unprotected surfaces
- Low profile contemporary design minus 50% lower profile than standard deadbolts
- New adjustable through bolt design- worry free installation
- Designer style and superior security with this Kwikset Signature Series product
- Deadbolt operated by electronic keypad or key from outside and thumb turn inside
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- Comes with 2 keys
- Latch has round corner faceplate
- Lifetime mechanical and finish warranty
- Certified highest residential security, durability and finish - ANSI/BHMA GRADE AAA
- Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
- Includes round deadbolt strike
- 1 in. deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
Specifications
Dimensions
| Assembled Depth (in.) |
2.63 in |
Assembled Height (in.) |
17.91 in |
| Assembled Width (in.) |
2.75 in |
Backset Size (in.) |
Adjustable |
| Deadbolt Bore Hole Diameter (in.) |
1 in |
Deadbolt Cross Bore Diameter (in.) |
2.125 in |
| Deadbolt Strike Height (in.) |
2.75 in |
Deadbolt Strike Width (in.) |
1.125 in |
| Deadbolt Throw Length (in.) |
1 in |
Deadbolt Trim Ring Diameter (in.) |
2.625 in |
| Handle grip length (in.) |
4.47 |
Inside top plate length (in.) |
2.59 |
| Inside top plate width (in.) |
2.75 |
Knob/lever bore hole diameter (in.) |
1 |
| Knob/lever cross bore diameter (in.) |
2.125 |
Knob/lever housing height (in.) |
2.625 |
| Knob/lever housing width (in.) |
2.625 |
Knob/lever strike height (in.) |
2.25 |
| Knob/lever strike width (in.) |
1.75 |
Knob/lever throw length (in.) |
.5 |
| Lever Grip Length (in.) |
4.47 in |
Maximum Door Thickness (in.) |
1.75 |
| Minimum Door Thickness (in.) |
1.75 |
Outside bottom handle plate length (in.) |
2.63 |
| Outside bottom handle plate width (in.) |
2.75 |
Outside key plate length (in.) |
2.63 |
| Outside key plate width (in.) |
2.75 |
Outside top handle plate length (in.) |
2.66 |
| Outside top handle plate width (in.) |
2.75 |
Projection (in.) |
2.63 |
Details
| Application Type |
Entry |
Commercial/Residential |
Residential |
| Deadbolt strike |
Round corner |
Deadbolt Type |
Single Cylinder Deadbolt |
| Door Handing |
Universal |
Door Lock Style |
Modern |
| Door Locks & Knobs Product Type |
Keyed Handlesets |
Electronic/Mechanical |
Mechanical |
| Features |
Adjustable Backset, Easy Installation, Kwikset SmartKey |
Finish |
Matte Black |
| Handleset Product Type |
2 Piece Front & Back |
Hardware Color Family |
Black |
| Hardware Finish Family |
Black |
Included |

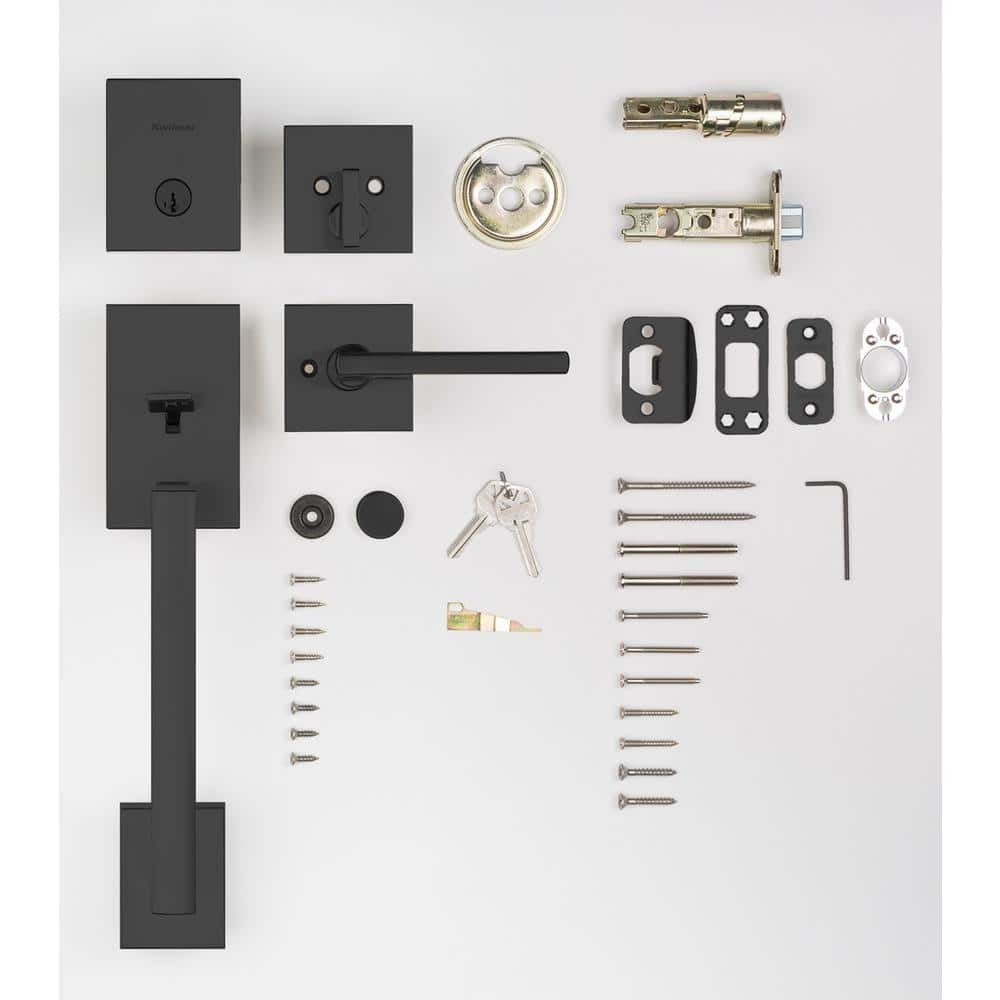

Hardware, Installation Instructions |
| Keying Type |
Keyed Different |
Keyway |
KW1 |
| Knob/lever strike |
Round corner |
Lever style |
Straight |
| Lock Type |
Keyed |
Material |
Metal |
| Product Weight (lb.) |
6.55 |
Returnable |
90-Day |
| Security/ANSI Grade |
ANSI Grade 1 (Best) |
Total Number of Keys Included |
2 |
