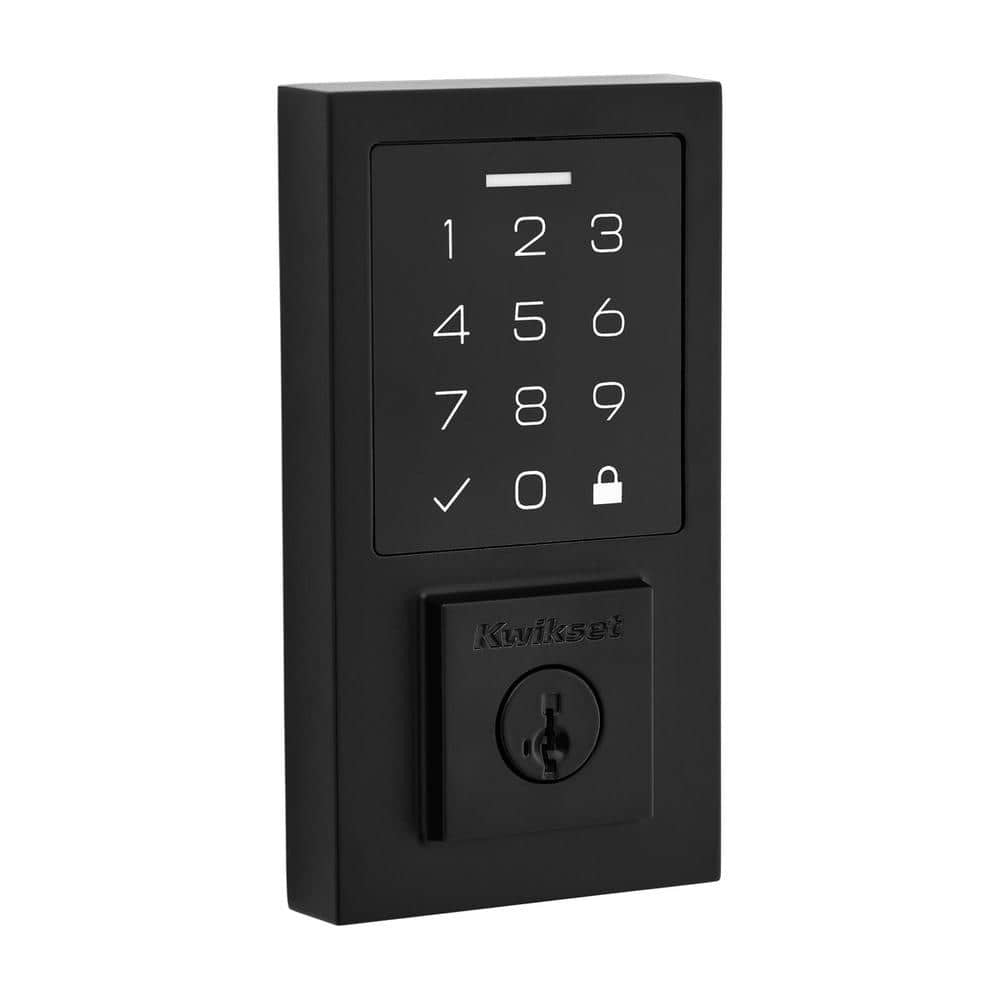

The SmartCode 270 touchpad keyless entry electronic deadbolt will increase the degree of style and security in your home. You can lock your property and never worry about keys thanks to a sleek contemporary design that complements the inside of your house. Simply input your unique code to obtain admission, and pressing a button to lock is also very simple. SmartCode uses 4 AA batteries and is simple to install, program, and use. As a backup keyway, it also has SmartKey re-key technology. The electronic touchpad, key outside, and turn-piece inside are used to open the deadbolt. The Matte Black finish's clear, contemporary appearance supports the deadbolt's contemporary design.
Features
- Touchpad interface combines enhanced tactile feedback with sleek style and bright LED illumination for easy code access
- Fast and quiet motorized deabolt provides 1-touch locking with a single touch of the finger
- Activate the auto-locking feature and choose between 30-second, 1-minute, 3-minute, 5-minute or 10-minute time delay for convenience and peace-of-mind
- Up to 50 customizable user codes and ten 1-time user codes with 4 to 8 digit code length for family, guests and service professionals
- Deadbolt exceeds ANSI/BHMA grade 2 security test standards
- Easily installs on standard doors between 1-3/8 in. and 1-3/4 in. thick (thick door service part available for 2-1/4 in. thick doors)
- Kwikset patented smartkey security protects against advanced break-in techniques and allows you to Re-Key your lock yourself in seconds
- Large and bright LED indicator light blinks green, amber or red to indicate unlocked, locked or low battery status
- Simple installation requiring a screwdriver with no hard wiring needed and supports bilt app 3D interactive voice, text and animation installation support
- Smartcode deadbolts come with BILT 3D interactive app instructions with voice, text and animation guidance for the easiest installation experience
- Smartcode deadbolts offer an optional programming code feature for improved access code management where a programming code is required to add or delete user codes
- Lifetime limited mechanical and finish warranties 1-year limited electronics warranty
- Deadbolt offers UL certified 20-minute fire rating
- Smartcode deadbolts are easy to install, program to use and operates on 4 Amper batteries with 12-month battery life (batteries not included)
- Easily remove the interior cover in seconds to access the batteries or programming button no screws to remove
- Small interior cover form factor for improved aesthetic
- 3 incorrect code attempts trigger an audible alarm and 60-second lockout for increased security
- Audible beep and visual flash when batteries are low power
Specifications
Dimensions
Backset Size (in.) |
Adjustable |
Faceplate Depth (in.) |
1 in |
Faceplate Height (in.) |
5.188 in |
Faceplate Width (in.) |
2.75 in |
Projection (in.) |
1 in |
Required Door Thickness (in.) |
1-3/8 in to 1-3/4 in |
Strike Plate Height (in.) |
2.75 in |
Strike Plate Width (in.) |
1.125 in |
Details
Battery Type |
AA Battery |
Commercial/Residential |
Residential |
Deadbolt Type |
Single Cylinder Deadbolt |
Door Handing |
Universal |
Door Lock Style |
Contemporary |
Door Locks & Knobs Product Type |
Deadbolts |
Electronic/Mechanical |
Electronic |
Features |
Adjustable Backset, Backlit, Delay Timer, Easy Installation, Indicator Light(s), Kwikset SmartKey |
Finish |
Matte Black |
Finish Family |
Matte Black |
Hardware Color Family |
Black |
Hardware Included |
Lock Only |
Included |
Drilling Template, Installation Instructions, Mounting Hardware |
Interior/Exterior |
Exterior, Interior |
Keyway |
KW1 |
Lock Type |
Deadbolt |
Material |
Metal |
Number of Batteries Required |
4 |
Power Source |
Battery |
Product Weight (lb.) |
3.373 lb |
Returnable |
90-Day |
Security/ANSI Grade |
ANSI Grade 2 (Better) |
Total Number of Keys Included |
2 |
Wired or Wireless |
No electrical connectivity |
