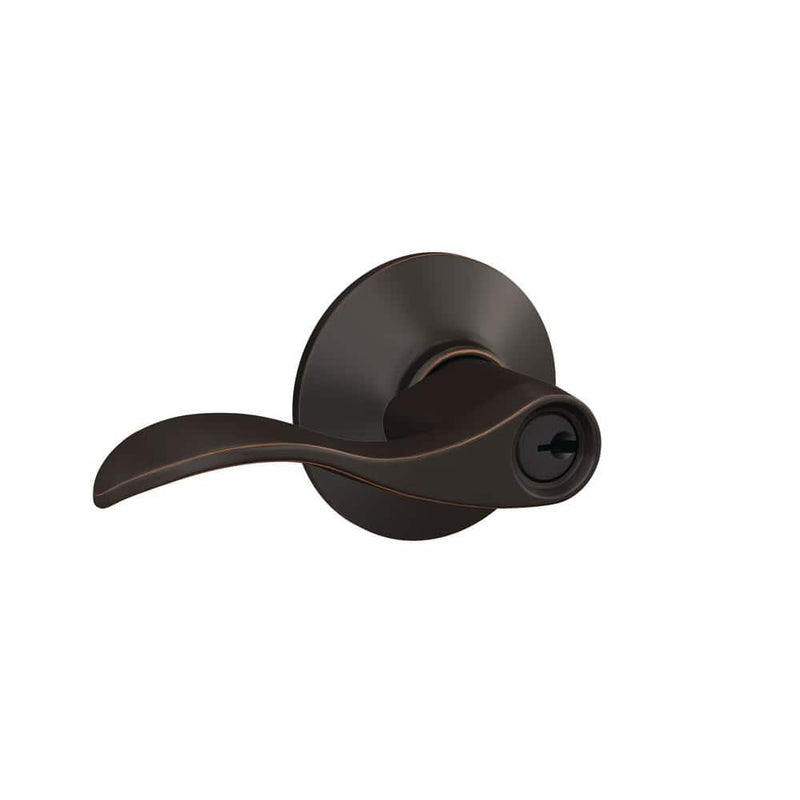

Schlage has been transforming houses into safe havens for more than 100 years. We provide distinctive door hardware since it not only complements your individual style but also serves to secure what is most important to you. Trust Schlage with the security of your property and choose from a range of premium exterior door levers and knobs.
Features
- Ideal use: keyed entry function is perfect for use on entry doors where keyed security is needed, unlocks from the inside when the door handle is rotated, allowing you to leave quickly and conveniently and re-enter easily from the outside, includes lockset and 2-keys
- Easy installation: self-aligning screw holes make installation easy and hassle-free, everything included to upgrade single bore hole doors, fits both right and left handed doors, upgrade an existing door lock yourself with no skill required--easy to install in minutes with only a screwdriver
- Certified highest security: premium metal construction and quality craftsmanship for everyday strength and peace of mind, grade 2/AAA certified BHMA rating for security, durability and finish
- Hassle-free fit: universal latch slides easily into place to fit standard doors with 2-3/8-in. or 2-3/4-in. backsets and requires no tools or manual adjustments, fits door thickness 1-3/8 in. to 1-3/4 in. includes both radius and drive-in faceplate for flexibility
- Trusted warranty: Schlage locks are backed by a limited lifetime mechanical and finish warranty, see Schlage warranty for full details
- Century of trust: trusted in over 40 million homes, Schlage has delivered durability and strength for over 100-years - trust your home to Schlage
Specifications
Dimensions
| Assembled Depth (in.) |
3.2 in |
Assembled Height (in.) |
9.8 in |
| Assembled Width (in.) |
6.5 in |
Backset Size (in.) |
Adjustable |
| Bore hole diameter (in.) |
1 |
Cross Bore Diameter (in.) |
2.125 in |
| Housing height (in.) |
2.8 |
Housing Width (in.) |
4.8 |
| Lever Grip Length (in.) |
4.1 in |
Maximum Door Thickness (in.) |
1.8 in |
| Minimum Door Thickness (in.) |
1.4 |
Projection (in.) |
2.3 |
| Strike Height (in.) |
2.3 |
Strike Width (in.) |
0.9 |
| Throw Length (in.) |
0.4 |
Details
| Application Type |
Entry |
Combo Pac |
Non-Combo |
| Commercial/Residential |
Residential |
Door Handing |
Universal |
| Door Lock Style |
Classic |
Door Locks & Knobs Product Type |
Keyed Levers |
| Electronic/Mechanical |
Mechanical |
Features |
Adjustable Backset, Easy Installation, Rekeyable |
| Finish |
Aged Bronze |
Hardware Color Family |
Bronze |
| Hardware Finish Family |
Bronze |
Included |
Hardware, Installation Instructions, Self Guiding Screws |
| Interior/Exterior |
Exterior |
Keyway |
C |
| Lever material |
Bronze |
Lever style |
Wave |
| Lock Type |
Keyed |
Material |
Solid Brass |
| Number of Pins |
5 |
Product Weight (lb.) |
2 lb |
| Returnable |
90-Day |
Security/ANSI Grade |
ANSI Grade 2 (Better) |
| Strike |
Round corner |
Total Number of Keys Included |
2 |
| Wired or Wireless |
No electrical connectivity |
